Waterproofing detail systems · OEM preview

Waterproof the detail.

Non-self-adhesive TPE mesh and fleece waterproofing tapes, paired with preformed corners for wet-area systems, compatibility sampling and distributor programs.

120 mm × 10 m proposed export rolls Mesh + fleece structures Inside + outside corners
JX-WT01 · Non-self-adhesive

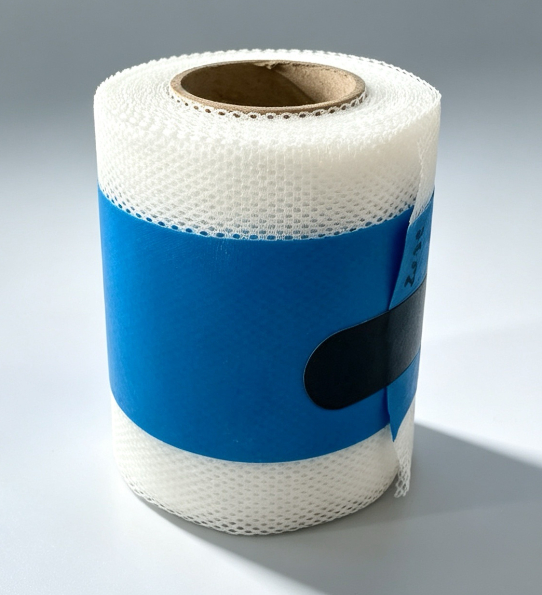

Blue TPE waterproofing tape roll with white textile mesh edges
Band + corner + coatingOne coordinated detail to evaluate as an assembly.
01

No peel-and-stick claim: embed in a compatible membrane or mortar.

03

Roll structures for mesh, gray mesh and nonwoven fleece programs.

05

Preformed corner SKUs for coordinated inside/outside accessory packs.

15d

Normal formal-quote validity from its issue date, subject to written terms.

Three roll structures

Choose the edge that fits the system.

The correct choice is not just color or price. Buyers should compare textile structure, wet-out behavior, finished build-up and compatibility with their exact waterproofing chemistry.

The critical transition

Surface coating is only part of the waterproofing story.

Changes of plane, seams and corners concentrate installation risk. The band is positioned in a fresh compatible coat, worked flat, then completed as part of the chosen system—not used as a stand-alone repair sticker.

01

Define the substrate, application and waterproofing chemistry.

02

Evaluate mesh or fleece wet-out in a controlled sample.

03

Pair roll stock with preformed corners for repeatable details.

See the concept install guide
Concept detail only. Final overlap, coat thickness, curing and compatibility follow the selected waterproofing-system instructions.
Selection matrix

A shorter route to a useful sample.

Send the membrane TDS or chemistry with the application. The brief can then identify the most relevant roll and corner candidates, subject to supplier confirmation.

OptionStructureStart withSample questionPlanning MOQ
JX-WT01TPE center + textile meshGeneral wet-area transitionsWhat is the confirmed mesh fiber, and does the coating fully wet the edge?500 rolls

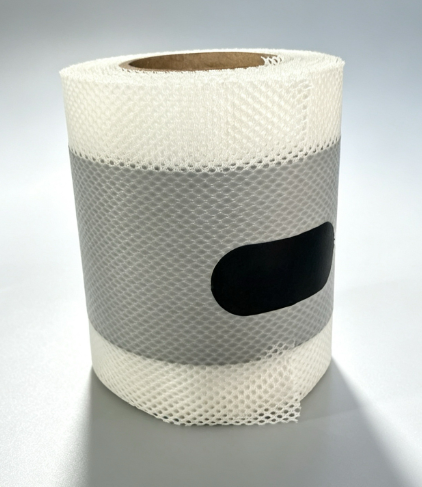

JX-WT02Gray flexible center + meshColor-defined OEM trialsWhat exact formulation and exposure evidence is required?500 rolls

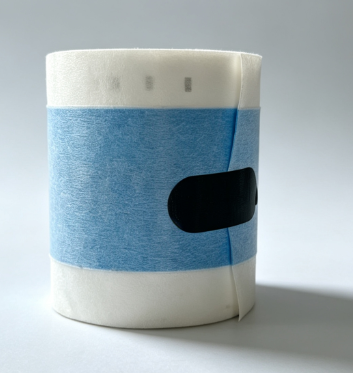

JX-WT03Flexible center + nonwoven fleeceFlat textile-edge detailsIs finished build-up acceptable under the selected finish?500 rolls
JX-CP seriesPerforated or solid preformsInside/outside corner kitsWhich geometry and coating method fits the assembly?1,000 pieces
Buyer-ready sampling

Build a proposed sample brief.

The intake checklist shows the coating chemistry, application, dimensions and volume context needed for a later supplier feasibility review. This concept preview does not collect requests or accept orders.

Review the intake checklist
01Your membrane TDS
02Roll structure options
03Inside + outside corners
04OEM packing brief
Built for B2B review

Designed around the way buyers qualify a system component.

This first-stage content architecture is organized for future commercial and technical evaluation—the public concept preview does not accept inquiries or orders.

01

Waterproofing system brands

02

Building-material importers

03

Tile and wet-room distributors

04

Project sourcing teams

Define the system, not just a product name.

Application + coating chemistry + quantity + destination creates a useful starting brief.

Review intake requirements
